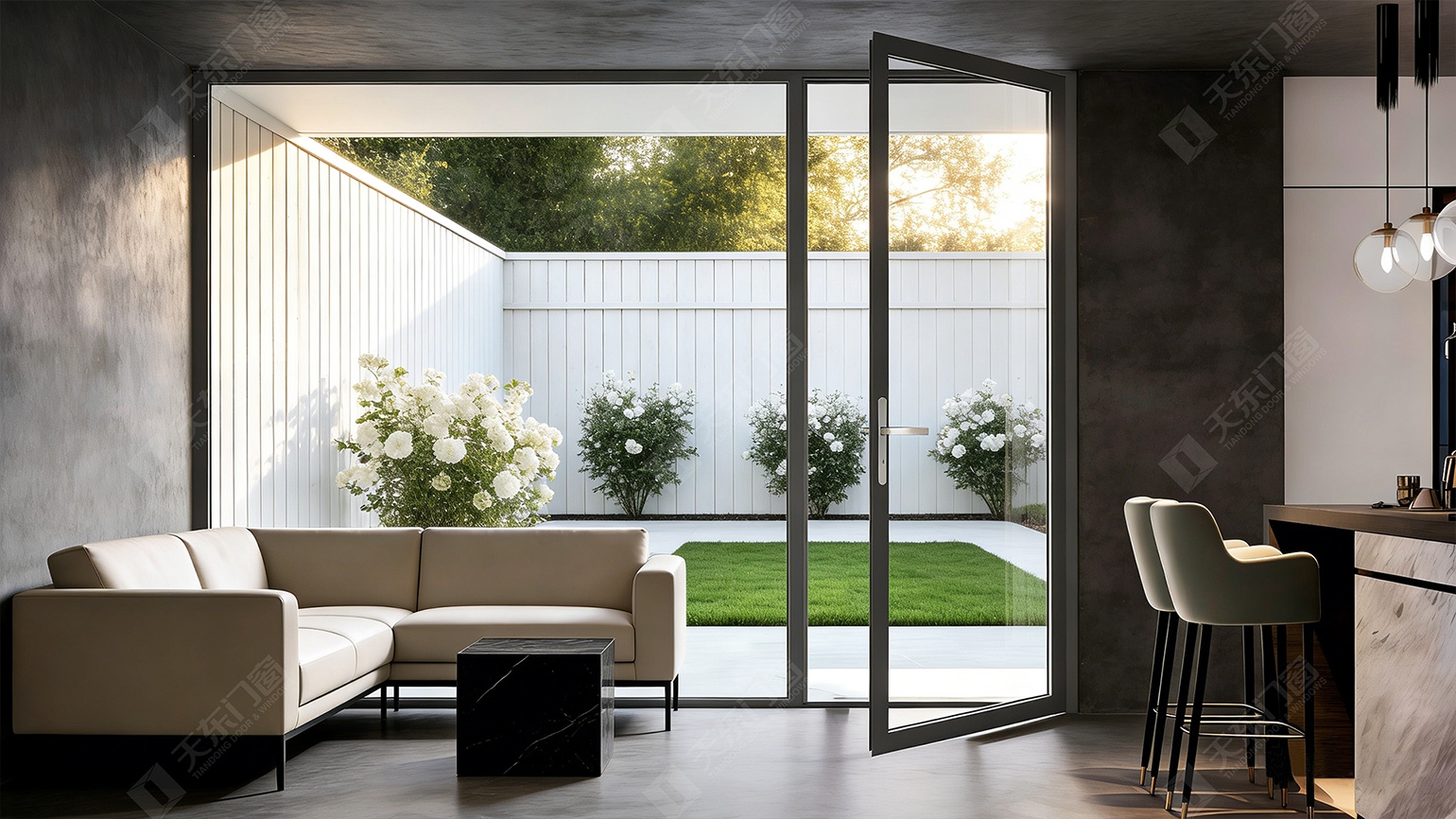

PS90 Series Casement Door

Product Configuration

Frame Width: 90mm

Profile Wall Thickness: 2.0mm-3.0mm

Hardware Configuration: Savio/Dr.Hahn/FRAMMAN

Hardware Configuration: ROTO/Dr.Hahn/TianDong

Glass Configuration: 6mm+16A+5mm+16A+6mm

Sealing Rubber Strips: EPDM

Threshold Types: High Threshold / Low Threshold / Threshold-free

Opening Methods: Inward Casement/ Outward Casement


Product Configuration
Frame Width: 90mm	Profile Wall Thickness: 2.0mm-3.0mm
Hardware Configuration: Savio/Dr.Hahn/FRAMMAN	Hardware Configuration: ROTO/Dr.Hahn/TianDong
Glass Configuration: 6mm+16A+5mm+16A+6mm	Thermal Insulation Strips: 35.3mm PA66GF25
Sealing Rubber Strips: EPDM	Opening Methods: Inward Casement/ Outward Casement
Threshold Types: High Threshold / Low Threshold / Threshold-free

Product Features
Door Frame and Sash Flush Design with No Protrusions Inside and Out	The long-tail sealing strips installed on both sides of the glass deliver enhanced airtightness
Energy-efficient three-chamber structure with vertical isothermal line for door panels	EPDM rubber strips for excellent corrosion resistance and airtightness
Automotive-grade float tempered glass for higher transparency and safety	European-Style Hardware Boasts Outstanding Aesthetics, Fashion and Durability
Pin-and-glue corner assembly for stronger structural stability and better airtightness	The Technoform nylon thermal barrier strips offer excellent heat insulation performance
Additional nylon glue blocks on the mullion to improve airtightness	Optional warm-edge spacers with triple ultra-clear standard glass
Energy-saving and soundproof cotton filling available to upgrade structural performance	Exposed drainage system with drainage caps for dust prevention and smooth water discharge
