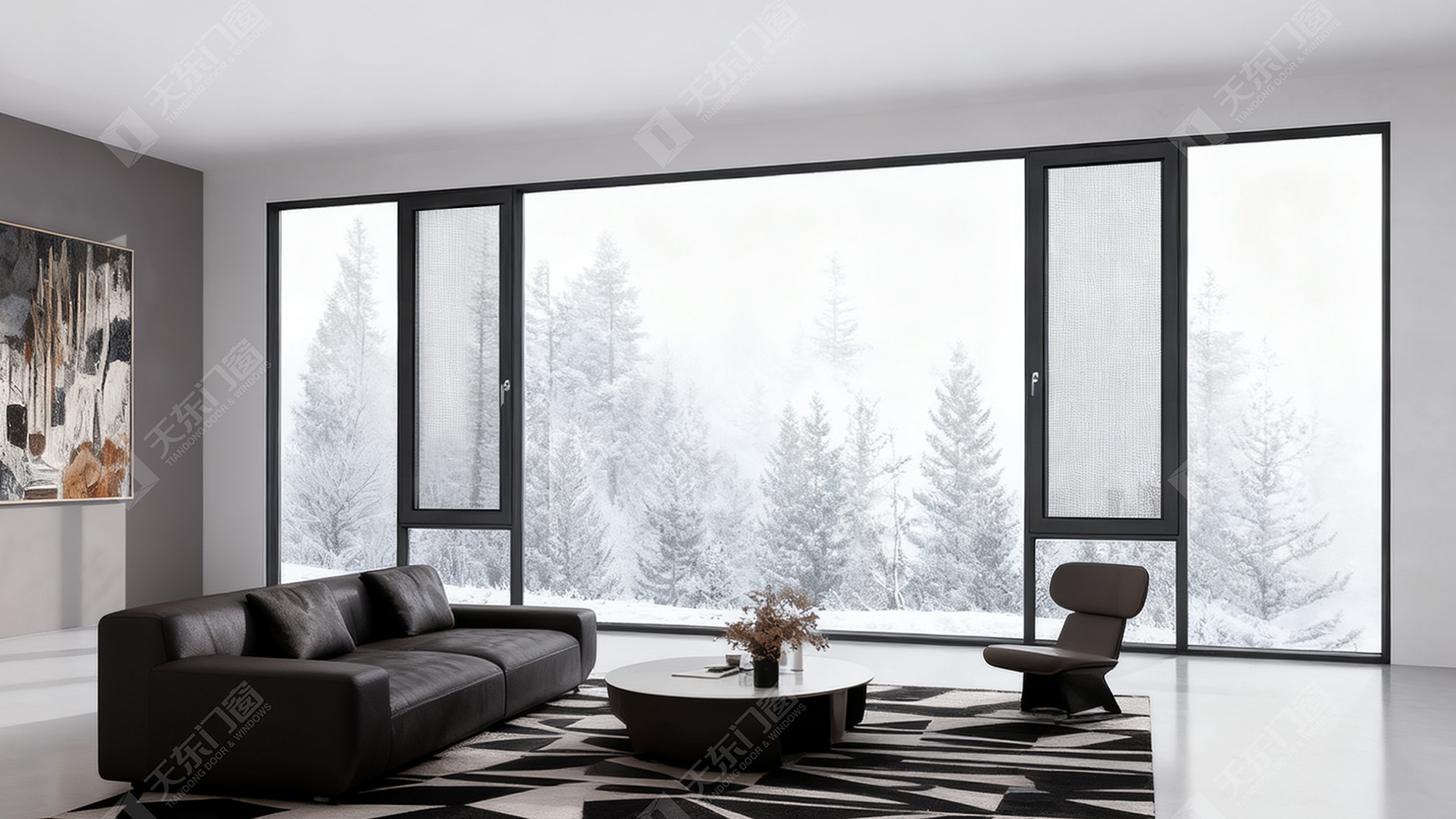

PS90 Series Integrated screen window

Product Configuration

Frame Width: 90mm

Profile Wall Thickness: 2.2mm

Hardware Configuration: SAVIO/FRAMMAN

Glass Configuration: 6mm+19A+6mm

Glass Options: 6mm+9A+6mm+9A+6mm

Sealing Rubber Strips: EPDM

Thermal Insulation Strips: 20/35.3mm PA66GF25

Opening Methods: Tilt & Turn


Product Configuration
Frame Width: 90mm	Profile Wall Thickness: 2.2mm
Hardware Configuration: SAVIO/FRAMMAN	Glass Configuration: 6mm+19A+6mm
Glass Options: 6mm+9A+6mm+9A+6mm	Sealing Rubber Strips: EPDM
Thermal Insulation Strips: 20/35.3mm PA66GF25	Interior Visible Width: Frame 38.8mm; Sash 73.8mm
Exterior Visible Width: Frame 62.8mm; Sash 64.3mm	Opening Methods: Tilt & Turn

Product Features
Flush frame-and-sash design of integrated screen window	6060-T66 aluminum profile is adopted for superior durability and high strength
Vertical isothermal line and three-chamber energy-saving structure for the window sash	EPDM rubber strips for excellent corrosion resistance and airtightness
Automotive-grade float tempered glass for higher transparency and safety	Welded equal-pressure rubber strips for inward-opening windows, enhancing airtightness
European-Style Hardware Boasts Outstanding Aesthetics, Fashion and Durability	Pin-and-glue corner assembly for stronger structural stability and better airtightness
The Technoform nylon thermal barrier strips offer excellent heat insulation performance	Additional nylon glue blocks on the mullion to improve airtightness
Energy-saving and soundproof cotton filling available to upgrade structural performance	Optional warm-edge spacers with triple ultra-clear standard glass
Exposed drainage system with drainage caps for dust prevention and smooth water discharge	Stainless Steel R3.5 Corner Guards for Inward-opening Sashes (Safety Protection)
The screen mesh is made of 304 stainless steel
