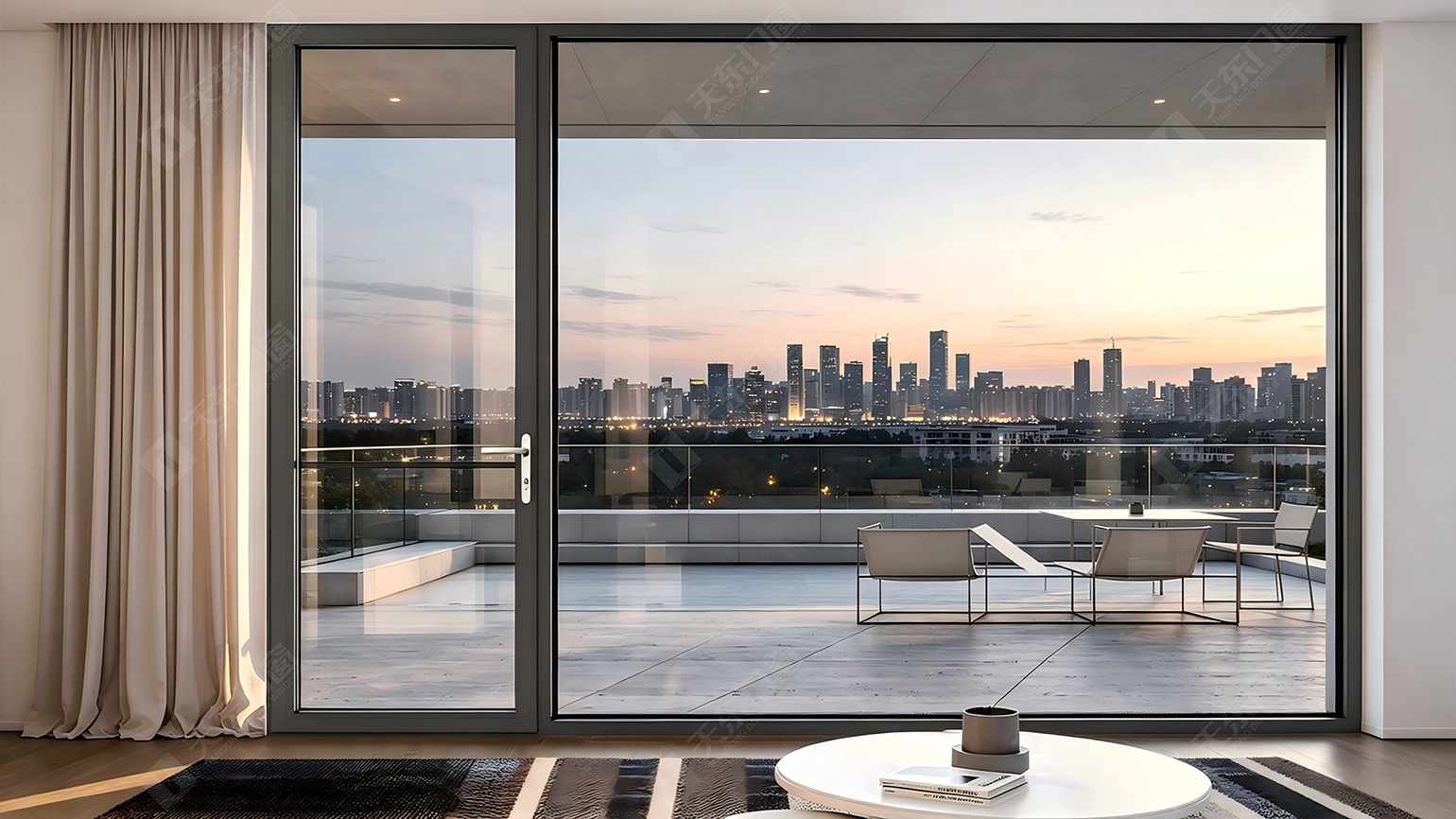

YJ75 Series Casement Door

Product Configuration

Frame Width: 75mm

Profile Wall Thickness: 2.0mm

Hardware Configuration: SI/ROTO/LuoXun/TianDong

Glass Configuration: 5mm+19A+5mm

Optional configuration: 5mm+12A+5mm+12A+5mm

Thermal Insulation Strips: 30mm PA66GF25

Sealing Rubber Strips: EPDM

Opening Methods: Inward Casement/ Outward Casement


Product Configuration
Frame Width: 75mm	Profile Wall Thickness: 2.0mm
Hardware Configuration: SI/ROTO/LuoXun/TianDong	Glass Configuration: 5mm+19A+5mm
Optional configuration: 5mm+12A+5mm+12A+5mm	Thermal Insulation Strips: 30mm PA66GF25
Sealing Rubber Strips: EPDM	Opening Methods: Inward Casement/ Outward Casement
Threshold Types: High Threshold / Low Threshold / Threshold-free

Product Features
Standard system window design, delivering outstanding performance in all aspects	Energy-efficient three-chamber structure with vertical isothermal line for door panels
EPDM rubber strips for excellent corrosion resistance and airtightness	Automotive-grade float tempered glass for higher transparency and safety
German-style hardware, featuring an aesthetic and fashionable appearance with superior durability	Pin-and-glue corner assembly for stronger structural stability and better airtightness
High-quality nylon thermal insulation strips for excellent heat insulation and preservation	Energy-saving and soundproof cotton filling available to upgrade structural performance
Exposed drainage system with drainage caps for dust prevention and smooth water discharge
