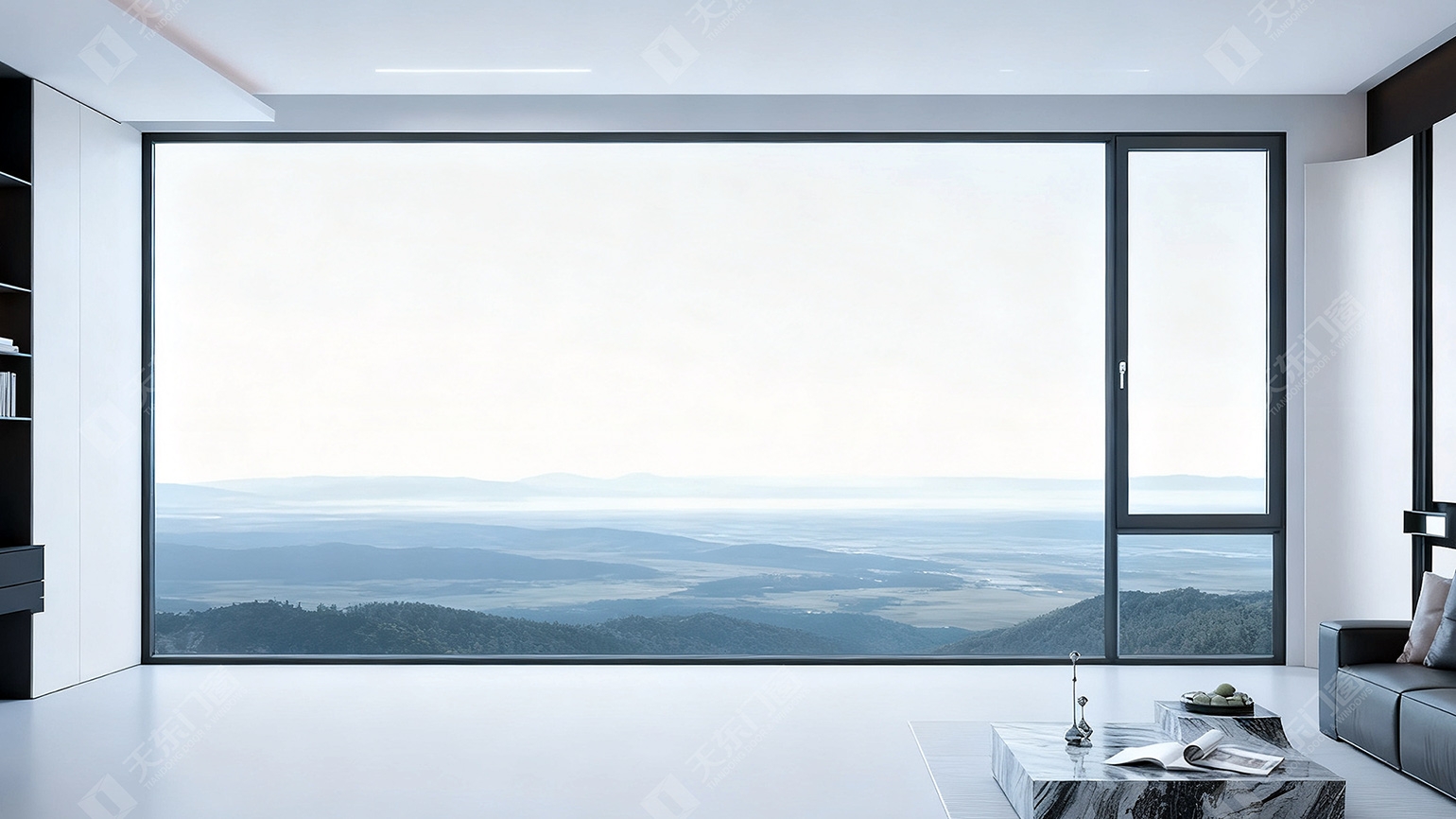

PS105 Series Passive Window

Product Configuration

Frame Width: 105mm

Profile Wall Thickness: 2.2mm

Hardware Configuration: SAVIO/FRAMMAN

Hardware Options: Sobinco

Glass Configuration: 6mm+16A+6mm+16A+6mm

Glass Options: 5mm+15A+mm5+15A+5mm+15A+5mm

Sealing Rubber Strips: EPDM

Opening Methods: Tilt & Turn


Product Configuration
Frame Width: 105mm	Profile Wall Thickness: 2.2mm
Hardware Configuration: SAVIO/FRAMMAN	Hardware Options: Sobinco
Glass Configuration: 6mm+16A+6mm+16A+6mm	Glass Options: 5mm+15A+mm5+15A+5mm+15A+5mm
Sealing Rubber Strips: EPDM	Thermal Insulation Strips: 64mm PA66GF25
Interior Visible Width: Frame 38.8mm; Sash 56mm	Exterior Visible Width: Frame 68.8mm; Sash 38mm
Opening Methods: Tilt & Turn

Product Features
6060-T66 aluminum profile is adopted for superior durability and high strength	The window frame structure of passive buildings delivers high-efficiency energy conservation
The long-tail sealing strips installed on both sides of the glass deliver enhanced airtightness	Vertical isothermal line & four-chamber energy-saving structure of the window frame
EPDM rubber strips for excellent corrosion resistance and airtightness	Automotive-grade float tempered glass for higher transparency and safety
Welded equal-pressure rubber strips for inward-opening windows, enhancing airtightness	European-Style Hardware Boasts Outstanding Aesthetics, Fashion and Durability
Pin-and-glue corner assembly for stronger structural stability and better airtightness	The Technoform nylon thermal barrier strips offer excellent heat insulation performance
Additional nylon glue blocks on the mullion to improve airtightness	Filling with energy-saving and sound-insulating cotton improves structural performance
Equipped with warm-edge spacers and triple-layer ultra-clear standard glass	Exposed drainage system with drainage caps for dust prevention and smooth water discharge
Stainless Steel R3.5 Corner Guards for Inward-opening Sashes (Safety Protection)
