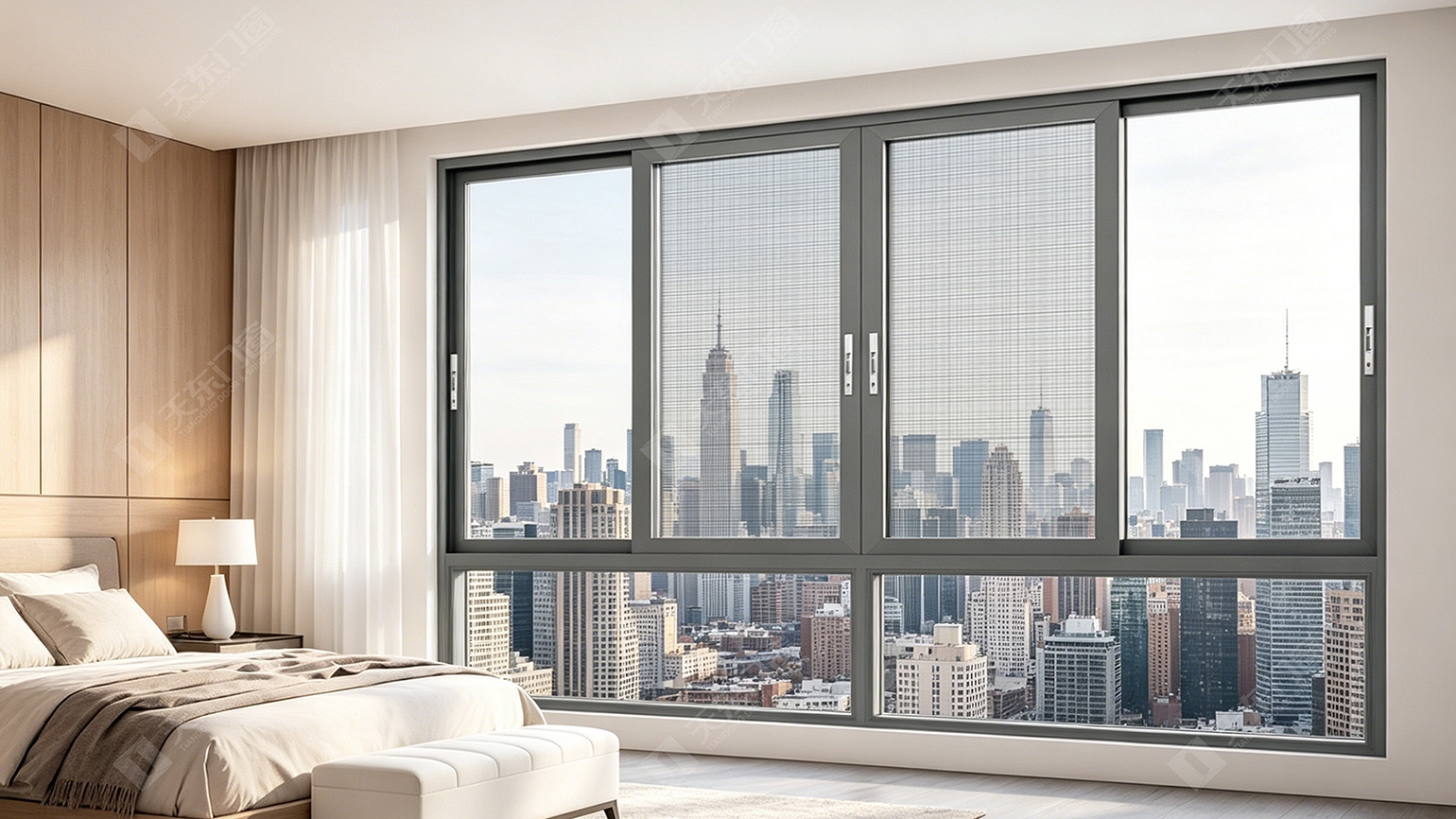

MG125 Series Slider Window

Product Configuration

Frame Width: 125mm

Profile Wall Thickness: 2.0mm

Hardware Configuration: FangSuo

Glass Configuration: 5mm+15A+5mm

Sealing Rubber Strips: EPDM

Thermal Insulation Strips: 14.8/10mm PA66GF25

Optional configuration: 4.0mm track

Opening Methods: Six-track Sliding


Product Configuration
Frame Width: 125mm	Profile Wall Thickness: 2.0mm
Hardware Configuration: FangSuo	Glass Configuration: 5mm+15A+5mm
Sealing Rubber Strips: EPDM	Thermal Insulation Strips: 14.8/10mm PA66GF25
Interior Visible Width: Frame 50mm; Sash 32mm	Exterior Visible Width: Frame 50mm; Sash 32mm
Opening Methods: Six-track Sliding	Optional configuration: 4.0mm track
Optional configuration: viewing handrail

Product Features
Six-track broken bridge thermal insulation sliding design for higher stability	The broken-bridge window structure is suitable for exterior wall applications
Does not occupy indoor space and does not affect home layout	EPDM rubber strips, corrosion-resistant with excellent sealing performance
Siliconized wool piles, soundproof, dust-proof and corrosion-resistant	Automotive-grade float tempered glass for higher transparency and safety
Custom-made snap locks and pulleys enable smoother and easier sliding	Nylon thermal barrier strips offer excellent heat insulation and preservation performance
Exposed drainage system with drainage caps for dust-proof and smooth drainage	The screen mesh adopts 304 stainless steel diamond mesh
