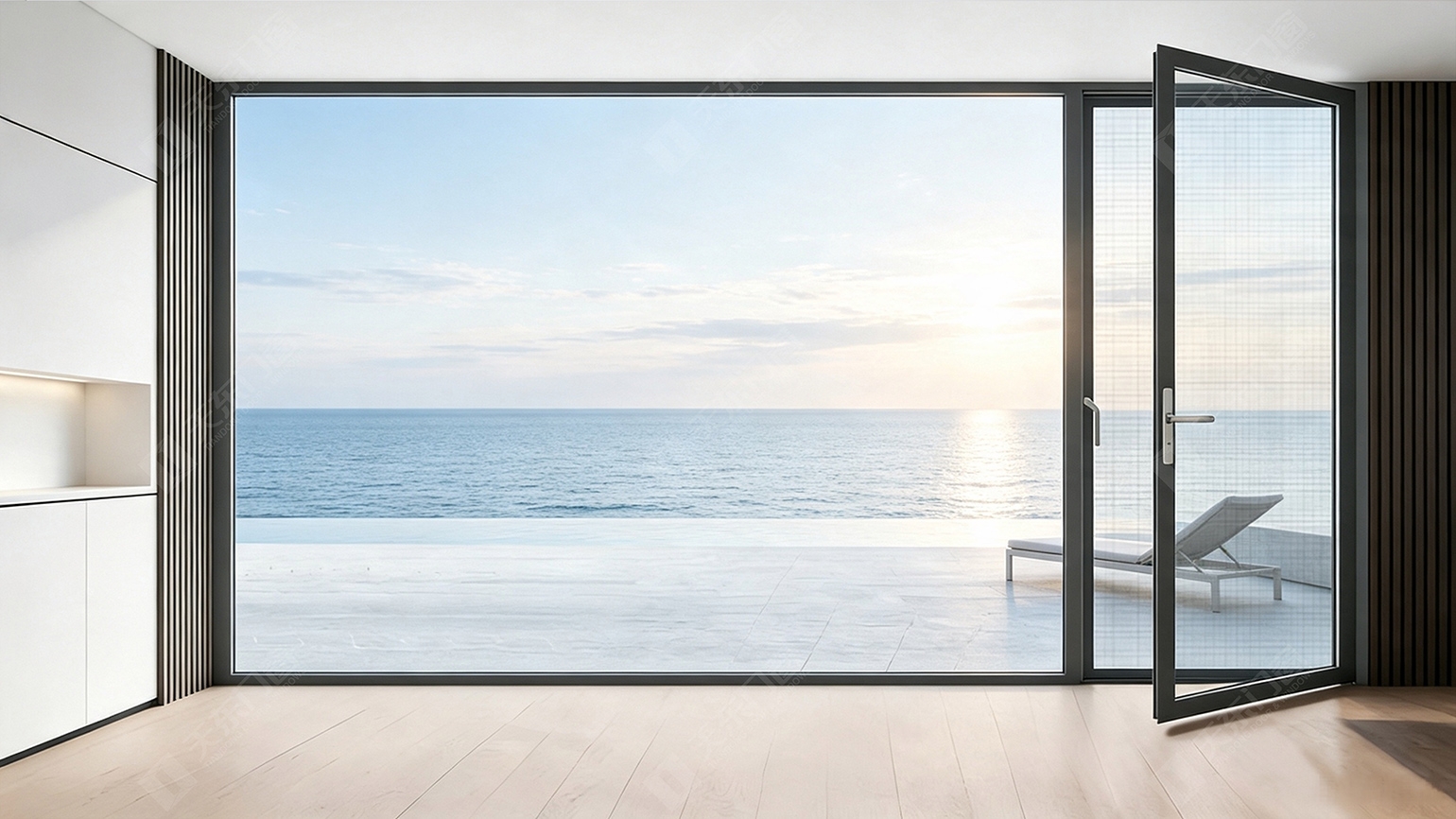

JJ120 Series Integrated screen door

Product Configuration

Frame Width: 120mm

Profile Wall Thickness: 1.8-2.0mm

Hardware Configuration: SI/ROTO/LuoXun/TianDong

Glass Configuration: 5mm+24A+5mm

Optional configuration: 5mm+12A+5mm+12A+5mm

Thermal Insulation Strips: 25mm PA66GF25

Sealing Rubber Strips: EPDM

Opening Methods: Inward Casement/ Outward Casement


Product Configuration
Frame Width: 120mm	Profile Wall Thickness: 1.8-2.0mm
Hardware Configuration: SI/ROTO/LuoXun/TianDong	Glass Configuration: 5mm+24A+5mm
Optional configuration: 5mm+12A+5mm+12A+5mm	Thermal Insulation Strips: 25mm PA66GF25
Sealing Rubber Strips: EPDM	Opening Methods: Inward Casement/ Outward Casement
Threshold Types: High Threshold / Low Threshold / Threshold-free

Product Features
Integrated screen door structure design ensures safety and aesthetics	Energy-efficient three-chamber structure with vertical isothermal line for door panels
EPDM rubber strips for excellent corrosion resistance and airtightness	Automotive-grade float tempered glass for higher transparency and safety
German-style hardware, featuring an aesthetic and fashionable appearance with superior durability	Pin-and-glue corner assembly for stronger structural stability and better airtightness
High-quality nylon thermal insulation strips for excellent heat insulation and preservation	Additional nylon glue blocks on the mullion to improve airtightness
Energy-saving and soundproof cotton filling available to upgrade structural performance	Exposed drainage system with drainage caps for dust prevention and smooth water discharge
The screen mesh is made of 304 stainless steel
