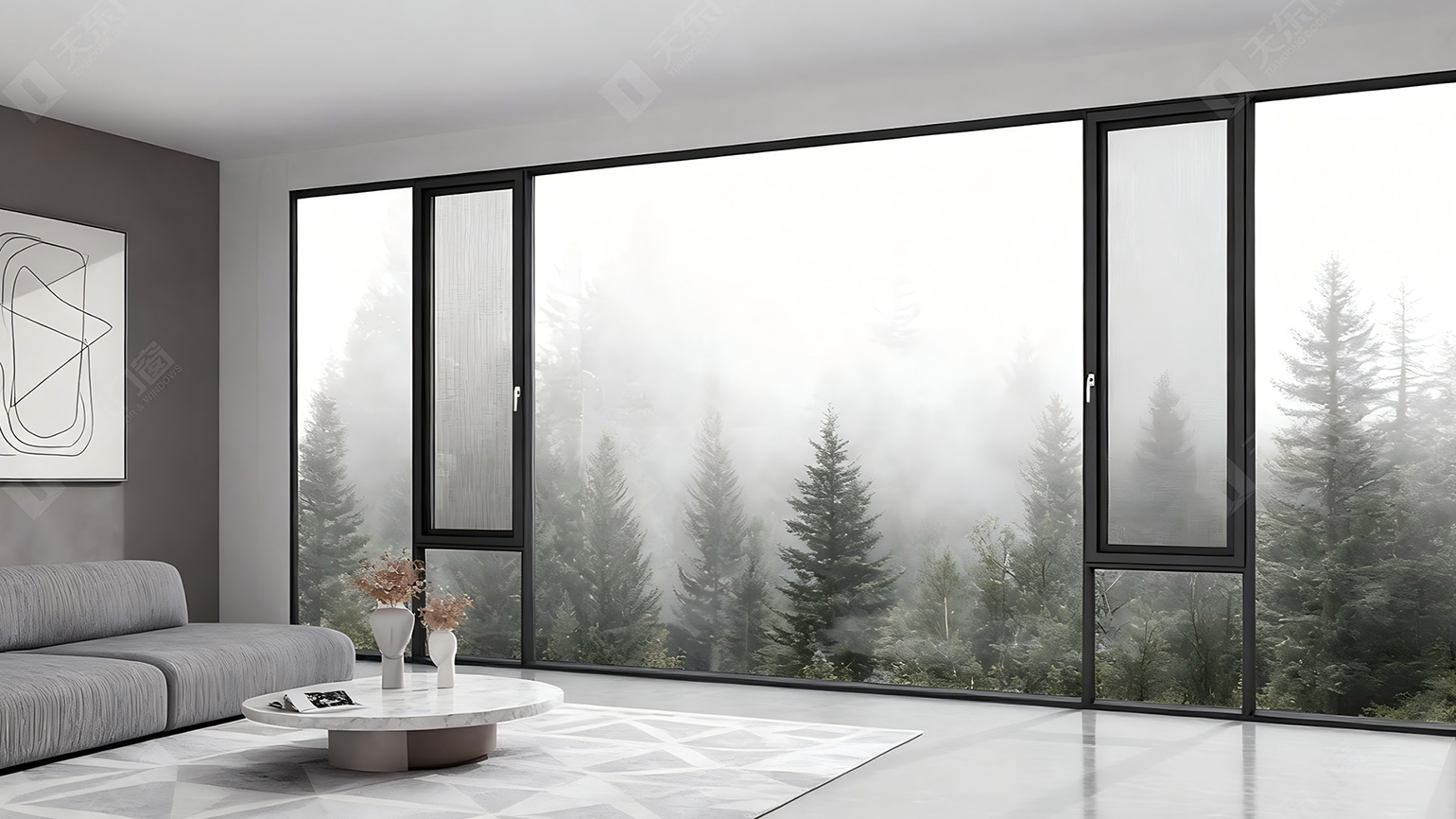

JJ120 Series Integrated screen window

Product Configuration

Frame Width: 120mm

Profile Wall Thickness: 1.8mm

Hardware Configuration: SIEGENIA/Wehag/HOPPE

Glass Configuration: 5mm+24A+5mm

Optional Glass Configuration: 5mm+9A+5mm+9A+5mm

Sealing Rubber Strips: EPDM

Thermal Insulation Strips: 35.3mm PA66GF25

Opening Methods: Externally Casement / Externally Top-hung


Product Configuration
Frame Width: 120mm	Profile Wall Thickness: 1.8mm
Hardware Configuration: SIEGENIA/Wehag/HOPPE	Glass Configuration: 5mm+24A+5mm
Optional Glass Configuration: 5mm+9A+5mm+9A+5mm	Sealing Rubber Strips: EPDM
Thermal Insulation Strips: 35.3mm PA66GF25	Opening Methods: Externally Casement / Externally Top-hung

Product Features
Flush frame-and-sash design of integrated screen window	Vertical isothermal line and three-chamber energy-saving structure for the window sash
EPDM rubber strips for excellent corrosion resistance and airtightness	Automotive-grade float tempered glass for higher transparency and safety
Welded equal-pressure rubber strips for inward-opening windows, enhancing airtightness	German-style hardware, featuring an aesthetic and fashionable appearance with superior durability
Pin-and-glue corner assembly for stronger structural stability and better airtightness	High-quality nylon thermal insulation strips for excellent heat insulation and preservation
Additional nylon glue blocks on the mullion to improve airtightness	Energy-saving and soundproof cotton filling available to upgrade structural performance
Exposed drainage system with drainage caps for dust prevention and smooth water discharge	Stainless Steel R3.5 Corner Guards for Inward-opening Sashes (Safety Protection)
The screen mesh is made of 304 stainless steel
