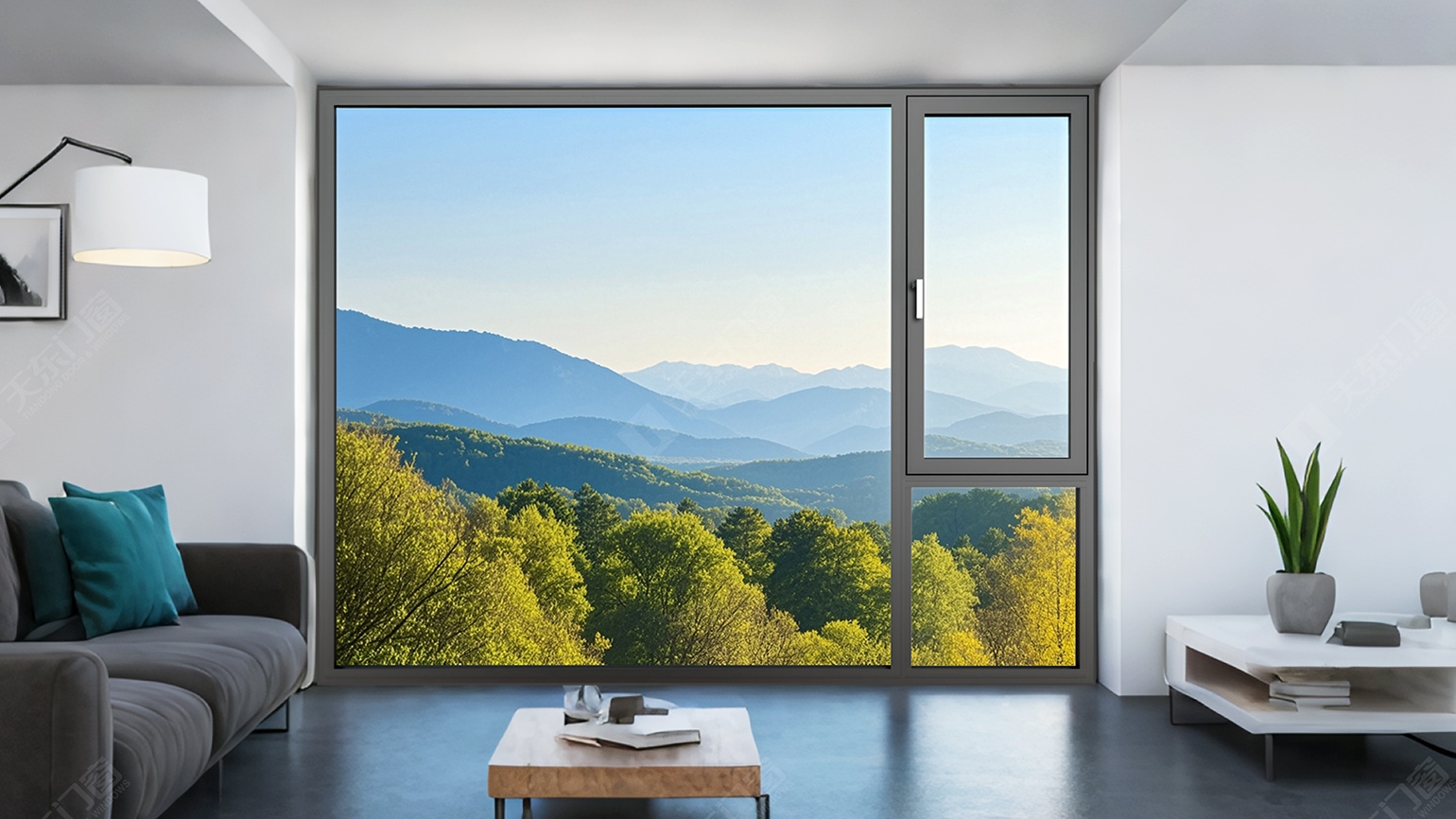

CJ85 Series Seamless Welded Surface Window

Product Configuration

Frame Width: 85mm

Profile Wall Thickness: 2.2mm

Hardware Configuration: Wehag

Glass Configuration: 6mm+24A+6mm

Optional Glass Configuration: 5mm+9A+6mm+9A+5mm

Sealing Rubber Strips: EPDM

Thermal Insulation Strips: 30mm PA66GF25

Opening Methods: Tilt & Turn


Product Configuration
Frame Width: 85mm	Profile Wall Thickness: 2.2mm
Hardware Configuration: Wehag	Glass Configuration: 6mm+24A+6mm
Optional Glass Configuration: 5mm+9A+6mm+9A+5mm	Sealing Rubber Strips: EPDM
Thermal Insulation Strips: 30mm PA66GF25	Interior Visible Width: Frame 32.8mm; Sash 68mm
Exterior Visible Width: Frame 56.8mm; Sash 41mm	Opening Methods: Tilt & Turn

Product Features
6060-T66 aluminum profile is adopted for superior durability and high strength	The seamless welding process on the sash surface ensures a smooth and flat finish
EPDM rubber strips for excellent corrosion resistance and airtightness	Automotive-grade float tempered glass for higher transparency and safety
Welded equal-pressure rubber strips for inward-opening windows, enhancing airtightness	German-style hardware, featuring an aesthetic and fashionable appearance with superior durability
Pin-and-glue corner assembly for stronger structural stability and better airtightness	High-quality nylon thermal insulation strips for excellent heat insulation and preservation
Energy-saving and soundproof cotton filling available to upgrade structural performance	Exposed drainage system with drainage caps for dust prevention and smooth water discharge
The rounded chamfer at the corner of the inward-opening sash ensures safety protection
